WIR640VO, Wideband infrared camera Products

WIR640VO

High sensitivity wideband uncooled infrared area camera equipped with Vox detector.

There are 2 bands of sensitivity wavelength with 3~4μm and 7~20μm, built-in band pass filter and acquiring the spectral image of middle infrared region are possible.

Ideal for resin material identification and thermal measurement through glass in the middle infrared region.

Image:Resin transparent image
Resin transparent image

Image:Filament through the incandescent bulb glass
Filament through the incandescent bulb glass

Feature

  • Area pixel number:640×480 pixel
  • Sensitivity wavelength:17μm
  • Sensitivity wavelength : 3 ~ 20μm
  • Maximum frame rate:30fps

Applications

  • Resin material identification
  • Thermal measurement through glass
  • Gas detection
  • High temperature measurement

Camera specifications

Item Specifications
Detector Vox (Vanadium oxide) type uncooled micro bolometer
Area pixel number 640 x 480 pixel
Pixel pitch 17μm/pixel (Light receiving section : 10.88mm x 8.16mm)
Sensitivity wavelength 3 ~ 20μm
Frame rate / Digital output Maximum 30fps / 16bit
Image output interface CameraLink Base Configuration x 1 Connector : MDR
Control interface USB (Dedicated application)
Power DC 12V
Operating temperature 0 ~ +50°C (No due condensation)
Thermal control function Non
External trigger mode Asynchronous trigger photography available(Trigger input via CameraLink CC1)
Lens M25 x 0.5 pitch
Camera dimensions W57mm x H62.5mm x D45mm (without lens)

Sensitivity wavelength

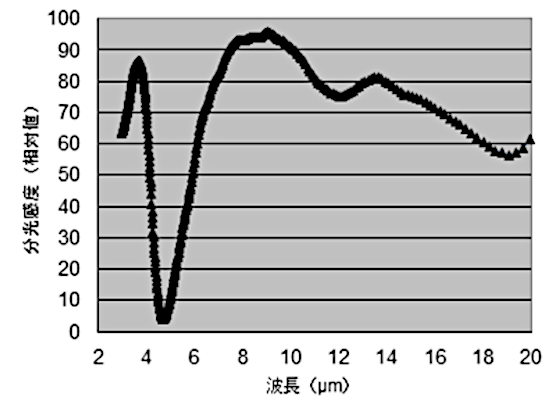

Graph:Sensitivity wavelength

External drawing

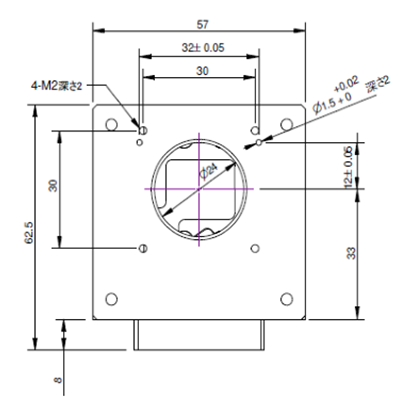

Image:External drawing(1)

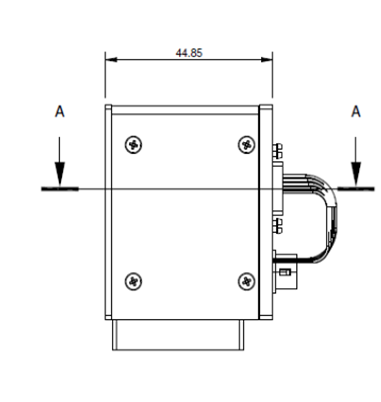

Image:External drawing(2)
