VIM1024G2, XGA far infrared camera, VIM series Products
VIM1024G2
High–definition model with the best pixel number for consumer cameras Effective for wide area night surveillance!
Camera body appearance photo (with OPH-40300Z)
Feature
- Area pixel number : 1024 x 768 pixel
- Sensitivity : 60mK (*1)
- Digital output : 14bit
- Pixel pitch : 17μm
- Frame rate : Standard 30fps (Maximum 50fps)
(*1) It is the value with lens F/1.0 at the target temperature 300K. Camera total NETD changes depending on lens usage.
Zoom lens is available! at using OPH-40330Z
- f = 400mm Zoom lens
- Lens F value : 1.5
Horizontal viewing angle in use
- Wide angle：25.5°
- Telephoto：3.33°(Optical zoom use)
- Telephoto：0.42° (Digital zoom use)
Camera specifications
| Item | Specifications |
|---|---|
| Sensitivity wavelength | 8 ~ 14μm (refer the worst data in below chart) |
| Image output interface | HD-SDI output or GigE Vision |
| Control interface | RS-232C (via Camera-link) |
| Power | DC 12V ±1V |
| Operating temperature | -10 ~ +50°C (No due condensation) |
| Storage temperature | -25 ~ +60°C (No due condensation) |
| External trigger mode | External trigger input installed (Frame synchronization trigger photography) |
| Thermal control function | Non (TEC-less) |
| Correction processing | Shutter-less correction (Corresponding to internal/external shutter correction) |
| Dynamic range | Cut out bit number and offset is settable optionally, Auto-off set function |
| Lens mount | Corresponding to various lens maker |
| Camera body dimensions | W80mm x H80mm x D60mm (Body only) |
Example

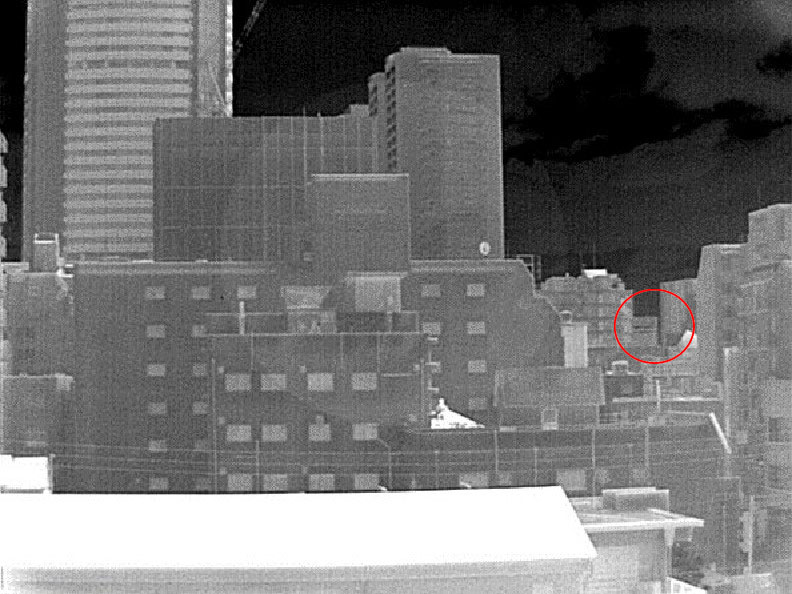

Zoom with Wide angle lens

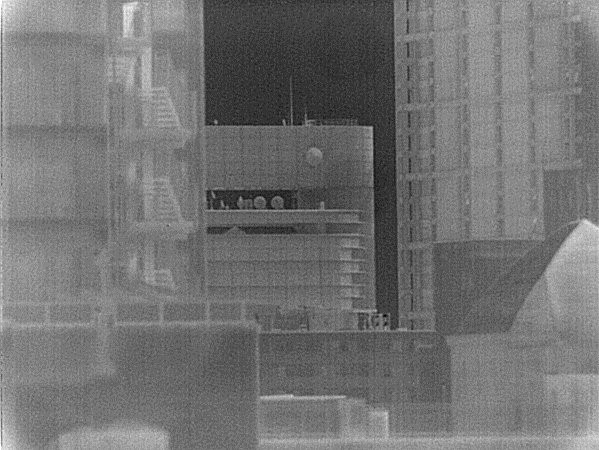

Zoom with Optics 7.5times
Optics x Digital 60 times

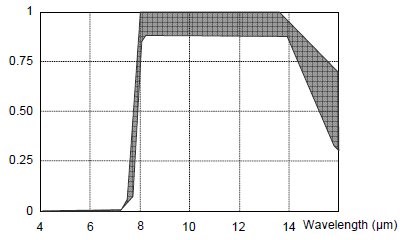

Sensitivity wavelength
