WIR384G2 / WIR640G2
Uncooled middle infrared camera is based on our far infrared camera VIM series with a built-in detector extending the sensitivity wavelength to 3-5μm (In-house developed products).
It is able to photograph inside through the flame in combination with a band pass filter which transmitted only around 3.9μm.
Ideal for monitoring applications of high temperature objects, such as internal parts of combustion furnace, glass melting furnace and rotary kiln.

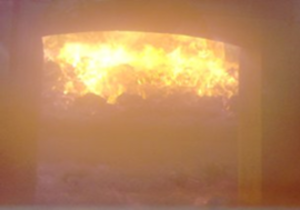

Visible image of in-furnace

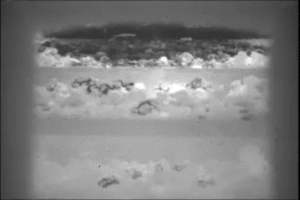

Image with through flame camera, same as left

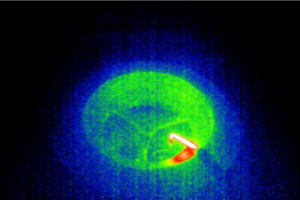

Ignited Cooktop image
Feature
- Area pixel number：384 x 288 or 640 x 480 pixel
- Sensitivity wavelength：3 ~ 13μm
- Maximum frame rate：30fps
Applications
- Through flame in-furnace monitoring
- Incinerator internal condition monitoring
- Blast furnace level monitoring
- High temperature measurement
- Glass melting furnace temperature measurement
Camera specifications
| Item | Specifications |
|---|---|
| Detector | Amorphous silicon type uncooled micro bolometer |
| Area pixel number | 384 x 288 or 640 x 480 pixel |
| Pixel pitch | 17μm/pixel |
| Sensitivity wavelength | 3 ~ 13μm (band pass filter 3.9μm is attached at photographing through flame) |
| Frame rate / Digital output | Maximum 30fps / 14bit |
| Image output interface | CameraLink/USB2.0/Ethernet/NTSC/GigE Vision (Equivalent to VIM-Gen2 series |
| Power | DC5V (USB bus power supply (*1) and GigE Vision is available to supply from PoE) |
| Operating temperature | -10 ~ +50°C (No due condensation) |
| Housing | Installable with water-cooled heat resistant housing |
| External trigger function | Frame synchronizing / Asynchronous trigger photography is available |
| Cooling system | Stirling cooler (K508N MTTF>17,000 hours) (*1) |
| Image output interface | SDI or GigE Vision output (Gigabit Ethernet) |
| Lens mount | M25 x 0.5 pitch or M34 x 0.5 pitch |
| Camera dimensions | VIM-384 : W33mm x H33mm x D45mm (without lens) VIM-640 : W38mm x H38mm x D51.2mm (without lens) |
(*1)Regards to VIM series, if it connect to USB2.0, please use at an ambient temperature under 40°C. If the temperature exceeds 40°C, please use USB3.0.

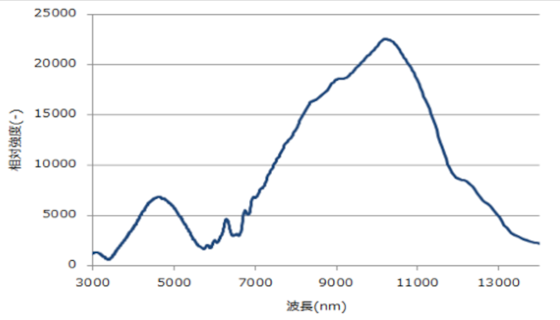

Sensitivity wavelength
External drawing
