VIM640AP with pixel pitch 12μm detector Products
VIM640AP
Shutter-less far infrared camera equipped with ATTO640D of LYNRED.
Approx 1.4 times of telephoto image is captured compared with conventional 17μm element assembling with same optics.

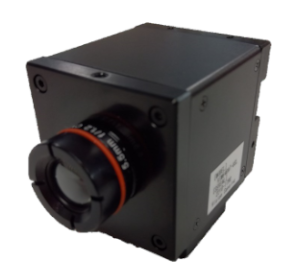

VIM640AP-USL over view
Feature
- Area pixel number : 640×480 pixel
- Pixel pitch：12μｍ
- NETD：60mK less (*1)
- Output：Same as VIM series
Applications
- Night monitoring system
- Railway failure thermal measurement
- fire monitoring system
Camera specifications
| Item | Specifications |
|---|---|
| Area pixel number | 640 x 480 pixel |
| Pixel pitch | 12μm/pixel |
| Camera NETD(*1) | 60mK (VIM640AP) |
| Frame rate | 30fps |
| Thermal measurement range | Standard : -20 ～ + 120°C Option : 50 ～ 500°C is available (Other temperature range is consulted) |
| Absolute temperature accuracy | Larger one from ±2°C or ±2% |
| Sensitivity wavelength | 8 ~ 14μm |
| Image output interface | USB / Ethernet / CameraLink / NTSC / GigE |
| Control interface | Same as above |
| External DIO | Input (External synchronizing trigger) |
| Lens | Corresponding to various lenses |
| Correction processing | Shutter-less correction |
| Software | Provide with ShutterLess Viewer (Image display, record and area determination function etc.) |
| Operating temperature | -20 ~ +50°C (No due condensation) |
| Storage temperature | -25 ~ +60°C (No due condensation) |
| Dimensions | W33mm × H33mm × D60mm |
| Weight | Under 160g |
(*1) It is the value with lens F/1.0 at the target temperature 300K. Camera total NETD changes depending on lens usage.
Example
Image of element pitch 17μm camera |
Image of ATTO640D detector |
External drawing
