MIR1280BB
High sensitivity middle infrared area camera with cooled XBn detector.
High-definition image of SXGA format and ideal for night long range surveillance in combination with telephoto lenses.
Camera appearance with f=72-900mm
Feature
- Area pixel number: 1280x1024 pixel
- Pixel pitch: 10μm
- Sensitivity wavelength: 3.6~4.15μm
- Maximum frame rate：30fps
Applications
- High resolution night surveillance
- Gus detection
- High sensitivity thermal measurement
- Tracking system seeker
Camera specifications
| Item | Specifications |
|---|---|
| Detector | XBn array detector (Quantum type Cold shield：F/4) |
| Area pixel number | 1280 x 1024 pixel |
| Pixel pitch | 10μm/pixel (Light receiving section ：12.8mm×10.24mm) |
| Sensitivity wavelength | 3.6 ~ 4.15μm |
| Frame rate / Digital output | 30fps / 12bit |
| Detector NETD | 25mK less |
| Cooling system | Stirling cooler （K508N MTTF>17,000 hours) (*1) |
| Image output interface | HD-SDI |
| Control interface | Serial communications via Ethernet |
| Power | DC 24V |
| Operating temperature | -20 ~ +65°C (No due condensation) |
| Storage temperature | -30 ~ +60°C (No due condensation) |
| Lens | Corresponding to various lense |
| Dimensions | W286mm x H286mm x D618mm (with lens) |
(*1)MTTF is average outage time and an operational life is not guaranteed. We recommend the maintenance for replacing every 2year.
Example
TV station with f=72mm
Zoom with f=900mm same as left

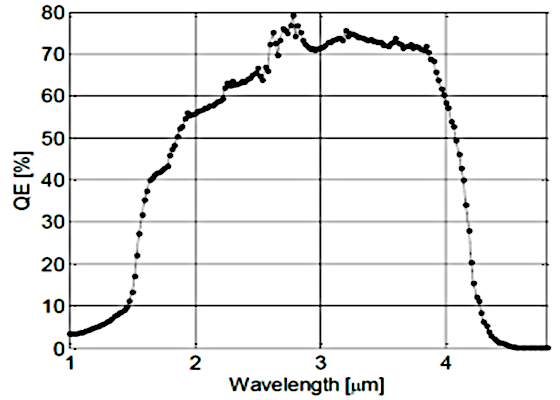

Sensitivity wavelength

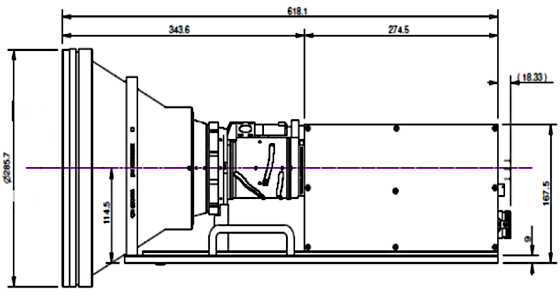

External drawing
