VIM640AT, Shutter-less far infrared camera, VIM series Products

VIM640AT

Shutter-less far infrared camera equipped with ATTO640 of LYNRED

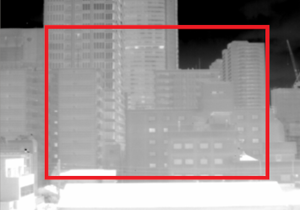

Image:Image of element pitch 17μm camera
Image of element pitch 17μm camera

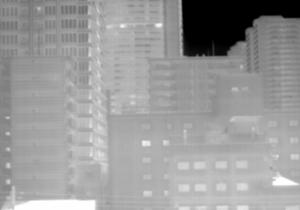

Image:Image of ATTO 640 detector
Image of ATTO640 detector

Specifications

  • Area pixel number : 640×480 pixel
  • Pixel pitch:12μm
  • NETD:70mK less (*1)
  • Output:Same as VIM series

(*1) It is the value with lens F/1.0 at the target temperature 300K. Camera total NETD changes depending on lens usage.

Application

  • Night monitoring system, Railway failure thermal measurement, fire monitoring system

Features

  • Approx 1.4 times of telephoto image is captured compared with conventional 17μm element assembling with same optics

Camera specifications

Item Specifications
Area pixel number 640 x 480 pixel
Pixel pitch 12μm/ pixel
Camera NETD (*1) 70mK
Frame rate 30 fps
Thermal measurement range Standard : -20 ~ + 120°C
Option : 50 ~ 500°C is available
(Other temperature range is consulted)
Absolute temperature accuracy Larger one from ±2°C or ±2%
Sensitivity wavelength 8 ~ 14μm
Storage temperature -25 ~ +60°C (No due condensation)
Image output interface USB / Ethernet / CameraLink
Control interface Same as above
External DIO Input (External synchronizing triger)
Lens Corresponding to various lenses
Correction processin Shutter-less correction
Software Provide with ShutterLess Viewer
(Image display, record and area determination function etc.)
Operating temperature -10 ~ +50°C (No due condensatio)
Storage temperature -25 ~ +60°C (No due condensation)
Dimensions / Weight W38mm x H38mm x D72mm, under 200g

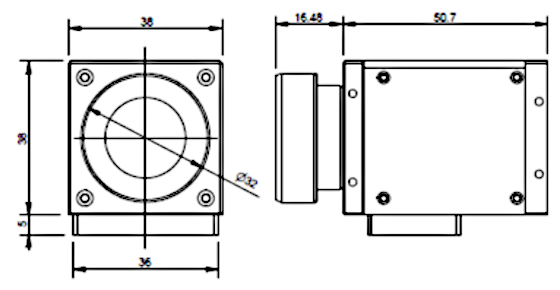

External drawing

Image:External drawing
