NIR640LN, Near infrared area camera Products
NIR640LN
Low noise InGaAs detector is equipped・Gated Imaging is possible!
- Area camera with InGaAs element FPA has the sensitivity range from visible to near infrared
- Stable near infrared images are capturable by operating TEC built in a detector
- High sensitive features enable a high-speed frame photography up to maximum 200 fps
- Gated Imaging mode is possible
- Available for laser ranging and laser tracking
Actual photography image
Assemble with f=50mm lens
Feature
- Area pixel number：640 x 512 pixel
- Sensitivity wavelength：15μm
- Sensitivity wavelength : 0.9 ~ 1.7μm
- Maximum frame rate：200fps
- Gated Imaging mode is possible
Applications
- Moisture detecting
- Dissimilar material identification (Pharmaceutical products etc.)
- Night surveillance under the low light
- High temperature measurement (Over 200°C)
- Laser ranging, laser tracking
Camera specifications
| Item | Specifications |
|---|---|
| Detector | InGaAs array detecter |
| Area pixel number | 640 x 512 pixel |
| Pixel pitch | 15μm/pixel (Light receiving section：9.6mm x 7.68mm) |
| Sensitivity wavelength | 0.9 ~ 1.7μm |
| Digital output | 12bit |
| Dark current | 2fA less (@283K) |
| Maximum frame rate | 200fps |
| Exposure time | 0.6μs ～ Maximum limit depends on specified value of flame rate |
| Optical filter | Diameter 25.4mm filter attachable (Insert between lens-detector) |
| Image output interface | CameraLink Base Configuration x 1TAP Connector：SDR |
| Control interface | RS-232C (via CameraLink) |
| Power | Voltage：DC 12V ± 1V |
| Power consumption | Maximum 15W |
| Operating temperature | -10 ~ +40°C (No due condensation) |
| Storage temperature | -25 ~ +60°C (No due condensation) |
| Thermal control function | With TEC built in detector |
| External trigger function | Frame synchronization / Asynchronous trigger photography available |
| Lens mount | Standard：C mount or M42 mount combined use |
| Camera dimensions | W67mm × H61mm × D90mm (Without lens) |

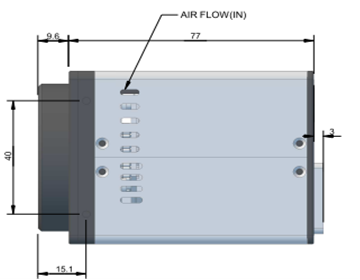

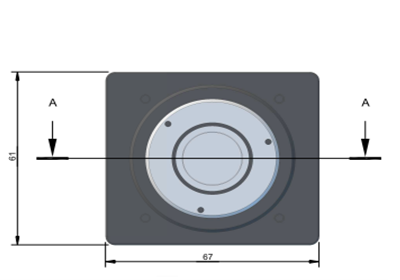

External drawing
