NIR640CD, InGaAs near infrared camera Products

NIR640CD

  • Area camera with InGaAs element FPA and the sensitivity region from visible to NIR
  • Stable near infrared images are capturable by operating TEC built in a detector
  • High sensitive features enable a high-speed frame photography up to maximum 200 fps
  • An optical filter is able to build in and ideal for acquiring spectral images

NIR640CD InGaAs near infrared camera
Assemble with f=50mm lens

Feature

  • Area pixel number:640 x 512 pixel
  • Sensitivity wavelength:15μm
  • Sensitivity wavelength : 0.6 ~ 1.7μm
  • Maximum frame rate:200fps

Applications

  • Moisture detecting
  • Dissimilar material identification (Pharmaceutical products etc.)
  • Night surveillance under the low light
  • High temperature measurement (Over 200°C)

Camera specifications

Item Specifications
Detector InGaAs array detecter
Area pixel number 640 x 512 pixel
Pixel pitch 15μm/pixel (Light receiving section:9.6mm x 7.68mm)
Sensitivity wavelength 0.6 ~ 1.7μm
Frame rate / Digital output Maximum 200 fps / 12 bit
Exposure time Variable in 1μm ~ 90ms (Maximum limit depends on specified value of flame rate)
Optical filter Diameter 25.4mm filter attachable (Insert between lens-detector)
Image output interface CameraLink Base Configuration × 2TAP Connector:SDR
Control interface RS-232C (via CameraLink)
Power Voltage:DC 12V ± 1V
Operating temperature -10 ~ +50°C (No due condensation)
Storage temperature -25 ~ +60°C (No due condensation)
Thermal control function TEC installation by Peltier cooler built in a detector (recommend 0°C)
External trigger function Frame synchronization / Asynchronous trigger photography available
Lens mount Standard:C mount or M42 mount combined use
Camera dimensions W67mm × H61mm × D86.6mm (Without lens)

Example

Image:Kerosene and water

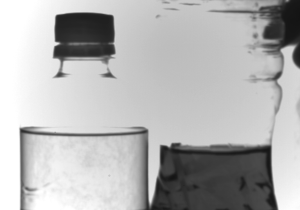

Kerosene and water

Image:Soldering iron image

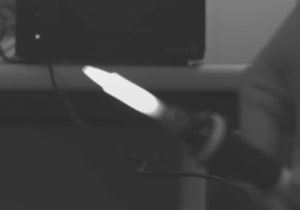

Soldering iron image

Sensitivity wavelength

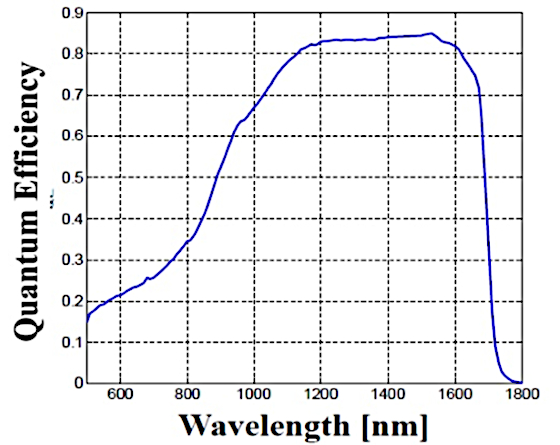

Graph:Sensitivity wavelength

External drawing

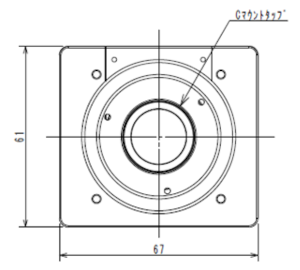

Image:External drawing(1)

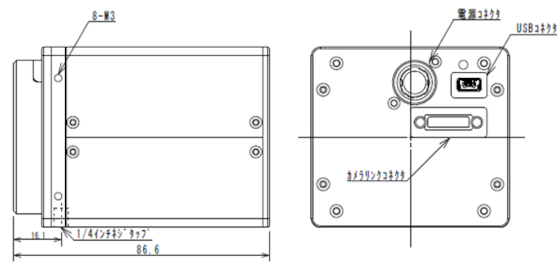

Image:External drawing(2)
