NIR640SN, InGaAs near infrared camera Products
NIR640SN
Temperature control function (TEC) is built-in a detector and stable near infrared images are capturable.
Ideal for acquiring spectacle images with assembling a filter by using high sensitive characteristics.
While it is high sensitivity, achieved lower price than conventional models.
Feature
- Area pixel number：640 x 512 pixel
- Sensitivity wavelength：15μm
- Sensitivity wavelength : 0.9 ~ 1.7μm
- Maximum frame rate：98fps
Applications
- Moisture detecting
- Dissimilar material identification (Pharmaceutical products etc.)
- Silicon wafer transmission detecting
- High temperature measurement (Over 200°C)
Camera specifications
| Item | Specifications |
|---|---|
| Detector | InGaAs array detecter |
| Area pixel number | 640 x 512 pixel |
| Pixel pitch | 15μm/pixel (Light receiving section：9.6mm x 7.68mm) |
| Sensitivity wavelength | 0.9 ~ 1.7μm |
| Full Well Capacity | 43Ke– (High sensitivity)/120Ke–(Middle sensitivity)/1.44Me-(Low sensitivity) |
| Black current | 30fA Noise with ROIC < 30e-(High sensitivity) |
| Frame rate / Digital output | 1 ~ 98fps / 16bit |
| Exposure time | Variable in 1μm ~ 900ms (Maximum limit depends on specified value of flame rate) |
| Optical filter | Diameter 25.4mm filter attachable (Insert between lens-detector) |
| Image output interface | CameraLink Base Configuration x 1TAP Connector：SDR |
| Control interface | RS-232C (via CameraLink) |
| Power | Voltage：DC 12V ± 1V |
| Consumption current | Maximum 9W |
| Operating temperature | -10 ~ +50°C (No due condensation) |
| Storage temperature | -25 ~ +60°C (No due condensation) |
| Thermal control function | With TEC built –in detector |
| External trigger function | Frame synchronization / Asynchronous trigger photography available |
| Lens mount | tandard：C mount or M42 mount combined use |
| Camera dimensions | W61mm x H59mm x D81mm (Without lens) |
Example
Indoor person
Transmission image of IC card

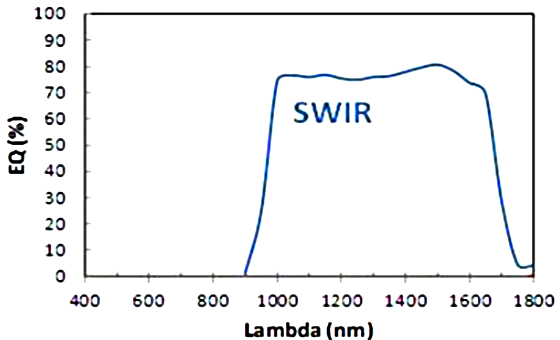

Sensitivity wavelength

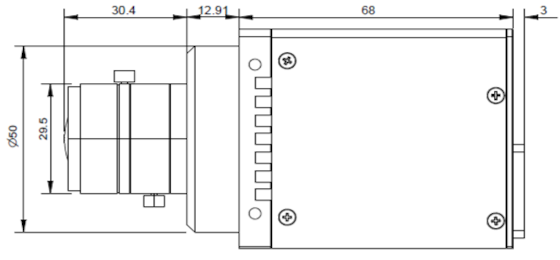

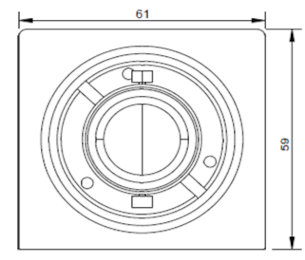

External drawing
