MIR640DB
This is an uncooled mid-infrared camera equipped with a sensitivity wavelength of 3 to 5 μm developed uniquely.
This model has higher sensitivity in the mid-infrared region than our previous products and is available at a lower price.
Camera overview (With f=14mm lens)
Feature
- Area pixel number: 640x480 pixel
- Pixel pitch: 17μm
- Sensitivity wavelength: 3~5μm
- Maximum frame rate：30fps
Applications
- Through flame in-furnace monitoring
- Incinerator internal condition monitoring
- High temperature measurement
- Glass melting furnace temperature measurement
Camera specifications
| Item | Specifications |
|---|---|
| Detector | Uncooled micro bolometer |
| Area pixel number | 640×480 pixel |
| Pixel pitch | 17μm/pixel |
| Sensitivity wavelength | 3～5um |
| Frame rate / Digital output | Maximum30fps・14bit |
| Image output interface | CameraLink/USB2.0/Ethernet/NTSC/GigE Vision (Equivalent to VIM-Gen2 series) |
| Power | DC5V (USB bus power supply (*1) and GigE Vision is available to supply from PoE) |
| Operating temperature | -10 ～ +50℃ (No due condensation) |
| Housing | Installable with water-cooled heat resistant housing |
| External trigger function | Asynchronous trigger photography available (Trigger input via CameraLink CC1) |
| Lens mount | M25 × 0.5 pitch or M34 × 0.5 pitch |
| Dimensions | Ｗ38ｍｍ × Ｈ38ｍｍ × Ｄ44.74ｍｍ(Without lens) |
Example
Gas detection

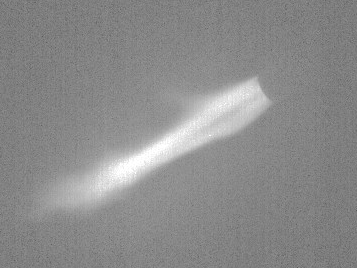

Water droplet photography at high FPS

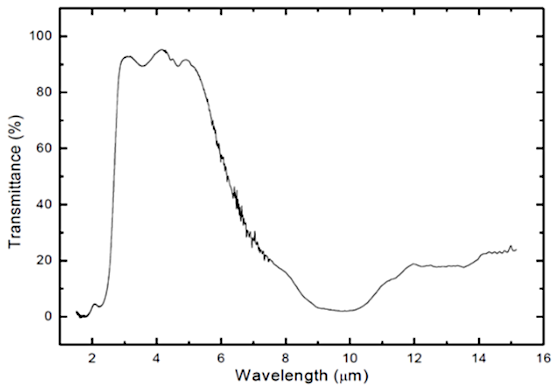

Sensitivity wavelength

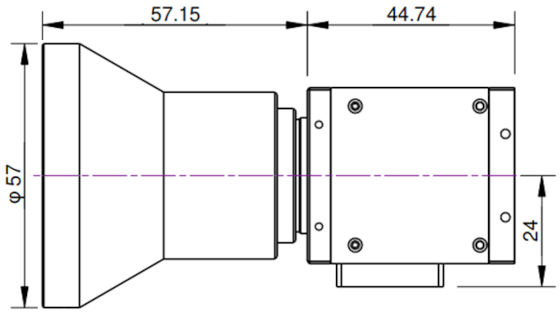

External drawing
Overview (With f=7.5mm lens)
