ULVIPS-PICO384A
Small size night vision camera for in-vehicle
Features
- This is a far infrared ray night vision camera with an unccoled detector from ULIS.
- It updates the revision table which is indispensable at a far infrared ray camera by self-learning taking a image.
- We downsize a camera head part for in-vehicle and output an image in differential interface.
- TEC-less - Calibration action
- Camera NETD:100mV/K or less
- It has shutter in front of lens.
- The differential serial digital output
Function
- For an evaluation and development base model of the in-vehicle night vision system.
Specifications
| Use detector | PICO384P by ULIS |
|---|---|
| The number of area existence effect pixels | ３８４×２８８pixel |
| Pixel pitch | １７ｕｍ/pixel（Sensor materials：Amorphous Silcon） |
| Frame rate | ３０frames／sec.（Maximum６０frames／sec.） |
| Camera Spectral response | ８～１２ｕｍ（Detector spectral response：８～１４ｕｍ） |
| Lens | Focal lengthｆ＝１３ｍｍ Ｆ／１．０９ Material：ＺｎＳ |
| Field of view | Horizontal：２８．２degrees×Vertical：２１．３degrees （Space resolving power ３００ｍ ahead：about４０ｃｍ square） |
| Camera NETD （Include a protection window lens） | １００ｍK or less（Operating temperature：２５℃、Target temperature：２５℃） |
| Image power output interface | The differential serial signal output（DS90C241@TI The considerable digital output） It can receive from DS90C1224@TI |
| Image resolving power | １４bit |
| Image output delay | １ｍｓ or less |
| Control interface | RS-422（Full duplex transmission. We consider to change to CAN.) |
| Power | DC １０～３０V less than consumption electric current１Ａ |
| Operating temperature | －２５～７５℃（Actual value We are planing to expand to－４０～８０℃） |
| Preservation temperature | －２５～７５℃（Actual value We are planing to expand to－４０～８０℃） |
| Shutter | Shutter out of the lens |
| Size | Ｗ５５ｍｍ×Ｈ６８ｍｍ×Ｄ７６ｍｍ |
Example of Image output
 |
 |
| In-vehicle pic（Night city area） | In-vehicle pic（Night high-way） |
 |
 |
| In-vehicle pic（Night city area） | Road pic（Night pedestrians） |

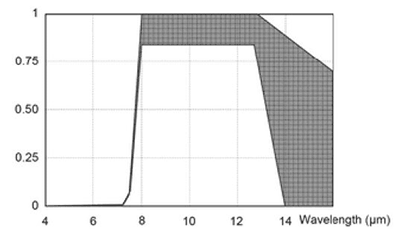

Sensor spectral response

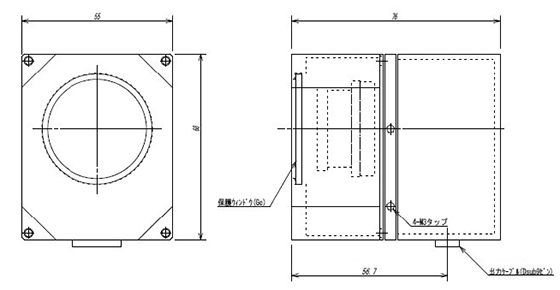

Outside drawing
